| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP508H-76 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Wire Inlet: | Vertical Wire Inlet | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
|---|---|---|---|
| Color: | Green | Number Of Contacts: | 2P-16P |
| Pitch: | 7.62mm | Rated Current: | 18A |
| Rated Voltage: | 300V | Type: | Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks |
| Wire Range: | 12-30 | ||
| High Light: | power distribution terminal block,power terminal block connector |
||

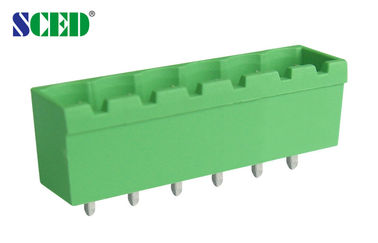

Male Sockets Vertical PCB Plug In Terminal Block Connector Pitch 5.08mm
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
How to order:
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 18 |
|
300 / 18 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
400 / 18 |
630 / 18 |
1000 / 18 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
1.4 |
||
|
Pin Dimension mm |
1.0*1.0 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Contact Person: Liceen Cheng
Tel: +8618118782877
Fax: +86-755-28769522
