| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP508H-75 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Green |
|---|---|---|---|
| Number Of Contacts: | Any Poles Available | Pitch: | 7.50mm |
| Rated Current: | 18A | Rated Voltage: | 300V |
| Type: | Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks | Wire Inlet: | Vertical Wire Inlet |
| High Light: | power distribution terminal block,electric terminal block |
||

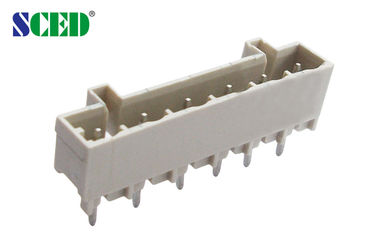

Grey 18A 7.50mm Plug In Terminal Block Male Header , Vertical Wire Inlet
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-75
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 18 |
|
300 / 18 |
|
Wire Range AWG |
|
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
500 / 18 |
630 / 18 |
1000 / 18 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.4 |
||
|
PinDimension mm |
1.0 x 1.0 |
||
