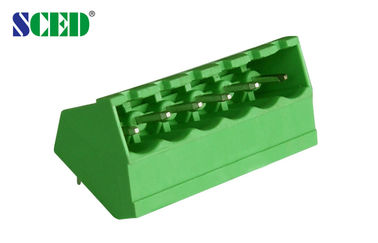

300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors

300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors

  • Highlight

    power distribution terminal block

    ,

    electric terminal block

  • Wire Inlet
    45 Degree Wire Inlet
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Green
  • Number Of Contacts
    Any Poles Available
  • Pitch
    5.08mm
  • Rated Current
    18A
  • Rated Voltage
    300V
  • Type
    Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-04
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors





300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors

□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:
300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18





Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.4

PinDimension                     mm

1.0 x 1.0



300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors 1




Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand


Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
