| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP508H-02F |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Wire Inlet: | Vertical Wire Inlet | Type: | Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks |
|---|---|---|---|
| Pitch: | 5.08mm | Number Of Contacts: | 2P-22P |
| Rated Voltage: | 300V | Rated Current: | 18A |
| Color: | Green | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | power terminal block connector,electric terminal block |
||
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

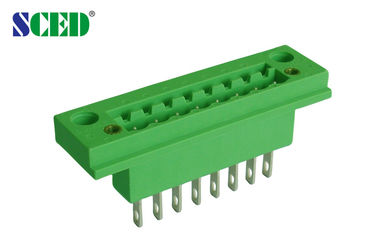

Through Panel 18A 300V Plug In Terminal Block 5.08mm Pitch , Male Sockets, 2-22P
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 18 |
|
|
|
Wire Range AWG |
|
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 18 |
400 / 18 |
500 / 18 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.4 |
||
|
PinDimension mm |
1.0 x 1.0 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
