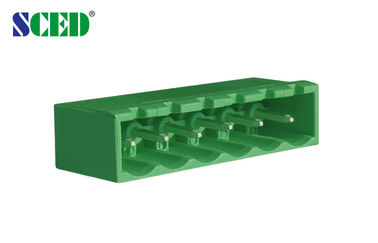

Green PCB Plug In Terminal Block Electrical 5.08mm Pitch 300 Voltage 18A

Green PCB Plug In Terminal Block Electrical 5.08mm Pitch 300 Voltage 18A

  • Green PCB Plug In Terminal Block Electrical 5.08mm Pitch 300 Voltage 18A
Green PCB Plug In Terminal Block Electrical 5.08mm Pitch 300 Voltage 18A
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508H-00V
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
Number Of Contacts: 2P-24P Pitch: 5.08mm
Rated Current: 18A Rated Voltage: 300V
Type: Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks Wire Inlet: Right Angle Wire Inlet
High Light:

power distribution terminal block

,

electric terminal block



Green PCB Plug In Terminal Block Electrical 5.08mm Pitch 300 Voltage 18A


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:
Green PCB Plug In Terminal Block Electrical 5.08mm Pitch 300 Voltage 18A 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18





Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.4

PinDimension                     mm

1.0 x 1.0





 Green PCB Plug In Terminal Block Electrical 5.08mm Pitch 300 Voltage 18A 1



Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
