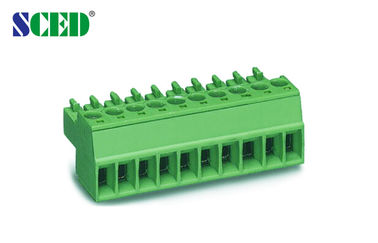

Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A Single Level

Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A Single Level

  • Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A Single Level
Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A Single Level
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381P-20
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
Number Of Contacts: 2P-22P Pitch: 3.50mm
Rated Current: 8A Rated Voltage: 300V
Type: Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks Wire Range: 16-30
Highlight:

power distribution terminal block

,

electric terminal block



Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A Single Level





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..




■Single Level;  □Double Levels;  □Triple Levels

This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A Single Level 0



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG

16-30





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7

Screw / Torque                    / lbf.in

M2 / 2-2.2



 Pitch 3.50mm Female Sockets Plug In Terminal Blocks 300V 8A Single Level 1



Competitive Advantage:




1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
