| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP381P-00 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks | Pitch: | 3.81mm |
|---|---|---|---|
| Number Of Contacts: | 2P-22P | Wire Range: | 16-30 |
| Rated Voltage: | 300V | Rated Current: | 8A |
| Color: | Green | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | power distribution terminal block,power terminal block connector |
||
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
How to order:

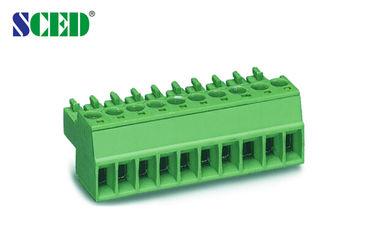

Female Sockets Pluggable Terminal Blocks for Electric Power , Pitch 3.81mm, 300V 8A, 2P-22P Plug-in Terminal Blocks
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 8 |
|
|
Wire Range AWG | 16-30 |
|
|
IEC Technical Data |
|
|
|
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass /Nickel Plated | ||
Terminal / Plating | Phosphor Bronze / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 7 | ||
Screw / Torque / lbf.in | M2 / 2-2.2 | ||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
