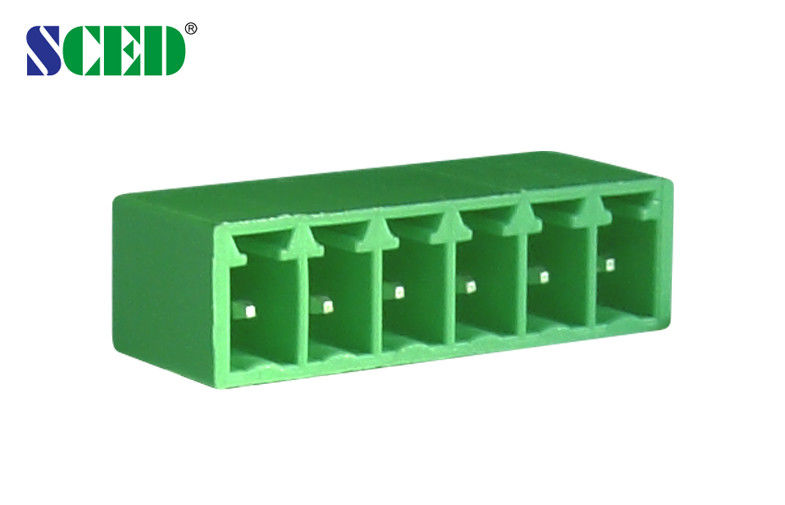

Pitch 3.50mm 8A Plug In Terminal Blocks PCB Right Angle Quick Connect

Pitch 3.50mm 8A Plug In Terminal Blocks PCB Right Angle Quick Connect

  • Pitch 3.50mm 8A Plug In Terminal Blocks PCB Right Angle Quick Connect
Pitch 3.50mm 8A Plug In Terminal Blocks PCB Right Angle Quick Connect
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-20V
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: Right Angle Wire Inlet Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color: Green Number Of Contacts: 2P-22P
Pitch: 3.50mm Rated Current: 8A
Rated Voltage: 300V Type: Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks
Highlight:

power distribution terminal block

,

electric terminal block





Pitch 3.50mm 8A Plug In Terminal Blocks PCB Right Angle Quick Connect

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:
Pitch 3.50mm 8A Plug In Terminal Blocks PCB Right Angle Quick Connect 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.2

PinDimension                     mm

0.8 x 0.8



Pitch 3.50mm 8A Plug In Terminal Blocks PCB Right Angle Quick Connect 1



Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
