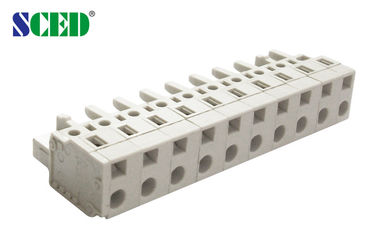

Plug 7.5mm Screwless Female Pluggable Terminal Block For Electric Power 300V 15A

Plug 7.5mm Screwless Female Pluggable Terminal Block For Electric Power 300V 15A

Products - Screwless Terminal Block
  • Highlight

    screwless terminal block connector

    ,

    spring terminal block connector

  • Type
    Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto
  • Pitch
    7.5mm
  • Number Of Contacts
    2P-16P
  • Wire Range
    14-16
  • Rated Voltage
    300V
  • Rated Current
    15A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508P-75
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Plug 7.5mm Screwless Female Pluggable Terminal Block For Electric Power 300V 15A

  • Plug 7.5mm Screwless Female Pluggable Terminal Block For Electric Power 300V 15A
  • Plug 7.5mm Screwless Female Pluggable Terminal Block For Electric Power 300V 15A
Get Price Contact Now

Plug 7.5mm Screwless Female Pluggable Terminal Block For Electric Power 300V 15A  2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Level;  □Double Levels;  □Triple Levels
This female plug match with male sockets’ series: TP508H-75, TP508H-75V
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
Plug 7.5mm Screwless Female Pluggable Terminal Block For Electric Power 300V 15A 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15





Wire Range                       AWG

14-16





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 15

320 / 15

630 / 15

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

10-11




Plug 7.5mm Screwless Female Pluggable Terminal Block For Electric Power 300V 15A 1



Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
