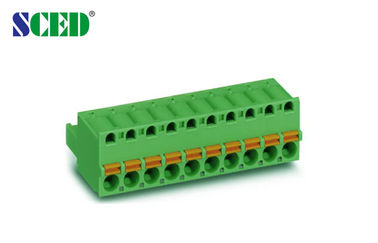

5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P

5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P

Products - Screwless Terminal Block
  • Highlight

    screwless terminal block connector

    ,

    spring terminal block connector

  • Type
    Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto
  • Pitch
    5.08
  • Number Of Contacts
    2P-22P
  • Wire Range
    12-30
  • Rated Voltage
    300V
  • Rated Current
    18A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508P-07
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P

  • 5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P
  • 5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P
Get Price Contact Now

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Level;  □Double Levels;  □Triple Levels
This female plug match with male sockets’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P 0



Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18





Wire Range                       AWG

12-30





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

630 / 18

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

10




5.08mm 300V 18A Screwless Terminal Block , Female Plug In Terminal Blocks 2P - 22P 1



Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
