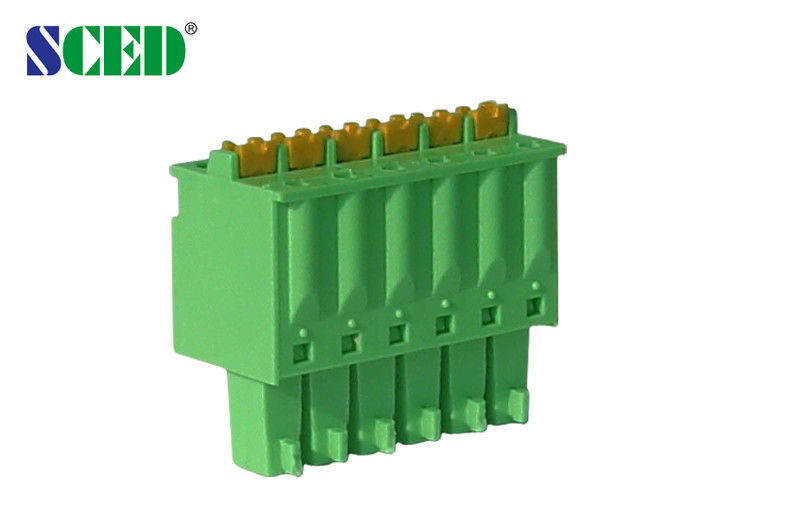

3.50mm PCB Screwless Terminal Block With Plug , Double Levels , 300V 8A

3.50mm PCB Screwless Terminal Block With Plug , Double Levels , 300V 8A

Products - Screwless Terminal Block
  • Highlight

    screwless terminal block connector

    ,

    spring terminal block connector

  • Type
    Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto
  • Pitch
    3.50mm
  • Number Of Contacts
    2P-22P
  • Wire Range
    16-30
  • Rated Voltage
    300V
  • Rated Current
    8A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381P-23
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

3.50mm PCB Screwless Terminal Block With Plug , Double Levels , 300V 8A

  • 3.50mm PCB Screwless Terminal Block With Plug , Double Levels , 300V 8A
  • 3.50mm PCB Screwless Terminal Block With Plug , Double Levels , 300V 8A
Get Price Contact Now

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG

16-30





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

9-10


Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Level;  □Double Levels;  □Triple Levels

This plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:
3.50mm PCB Screwless Terminal Block With Plug , Double Levels , 300V 8A 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



 3.50mm PCB Screwless Terminal Block With Plug , Double Levels , 300V 8A 1


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
