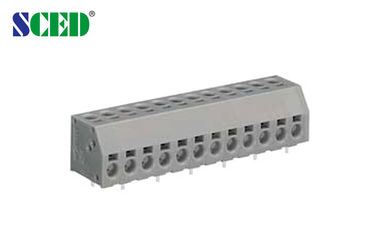

300V 10A Grey PCB Screwless Terminal Blocks 5.00mm Pitch , Right Angle Wire Inlet

300V 10A Grey PCB Screwless Terminal Blocks 5.00mm Pitch , Right Angle Wire Inlet

  • 300V 10A Grey PCB Screwless Terminal Blocks 5.00mm Pitch , Right Angle Wire Inlet
300V 10A Grey PCB Screwless Terminal Blocks 5.00mm Pitch , Right Angle Wire Inlet
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ500-05
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto Pitch: 5.00mm
Number Of Contacts: Any Poles Available Wire Range: 16-26
Rated Voltage: 300V Rated Current: 10A
Color: Grey Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

screwless terminal block connector

,

spring terminal blocks

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

16-26



16-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.7

Stripping Length                    mm

8.5-9.5






Detailed product Description:
300V 10A Grey PCB Screwless Terminal Blocks 5.00mm Pitch , Right Angle Wire Inlet
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

PCB Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory


How to order:
300V 10A Grey PCB Screwless Terminal Blocks 5.00mm Pitch , Right Angle Wire Inlet 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


 300V 10A Grey PCB Screwless Terminal Blocks 5.00mm Pitch , Right Angle Wire Inlet 1




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
