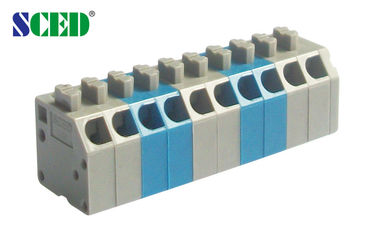

3.50mm PCB Spring Screwless terminal Block For Electric Power , 2P-28P 300V 5A
□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
PCB Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/10 |
| 300/10 |
Wire Range AWG | 14-26(sol) 16-26(str) |
| 14-26(sol) 16-26(str) |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 125 / 10 | 250 / 10 | 320 / 10 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Spring / Plating | Stainless Steel / - | ||
Terminal / Plating | Brass / Tin Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ1.2 | ||
Stripping Length mm | 8-9 | ||
Competitive Advantage:
Our services cover all industries and reach all parts of the world.
