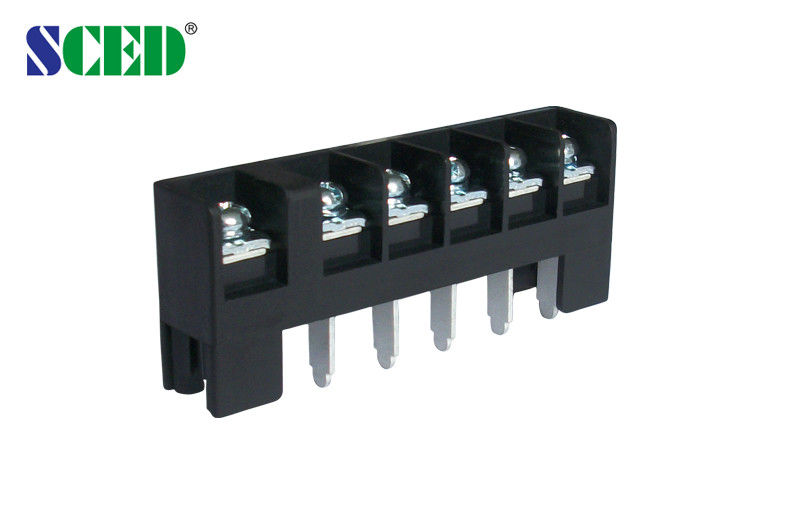

20A 300V Barrier Terminal Block For Electric Lighting Pitch 13.50mm

20A 300V Barrier Terminal Block For Electric Lighting Pitch 13.50mm

  • Highlight

    barrier type terminal block

    ,

    pcb terminal blocks

  • Levels
    Single Level
  • Wire Inlet
    Right Angle Wire Inlet
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    4P-12P
  • Pitch
    13.50mm
  • Rated Current
    20A
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    12-20
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB1350-00
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

20A 300V Barrier Terminal Block For Electric Lighting Pitch 13.50mm





20A 300V Barrier Terminal Block For Electric Lighting Pitch 13.50mm



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers





How to order:

20A 300V Barrier Terminal Block For Electric Lighting Pitch 13.50mm 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B          C          D

Rated Voltage / Current              V/A

   300/ 20      300/ 20       300 / 10

Wire Range                       AWG

    12-20       12-20        12-20

IEC Technical Data



Overvoltage Category

       Ⅲ         Ⅲ         Ⅱ

Contamination Class

 3          2          2

Rated Voltage / Current              V/A

  400 /20    630 / 20      800 / 20

Rated Surge Voltage                 KV

       8           8         8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass Tin / Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                  mm

              φ1.6x4.4

Stripping Length                    mm

              10-12

Screw / Torque                    / lbf.in

            M 5 / 16-18





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
