| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TB1300-03-C |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Black |
|---|---|---|---|
| Number Of Contacts: | 2P-18P | Pitch: | 13.00mm |
| Rated Current: | 40A | Rated Voltage: | 600V |
| Type: | Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks | Wire Range: | 20-8 |
| Levels: | Single Level | Wire Inlet: | Right Angle Wire Inlet |
| High Light: | barrier type terminal block,pcb terminal blocks |
||

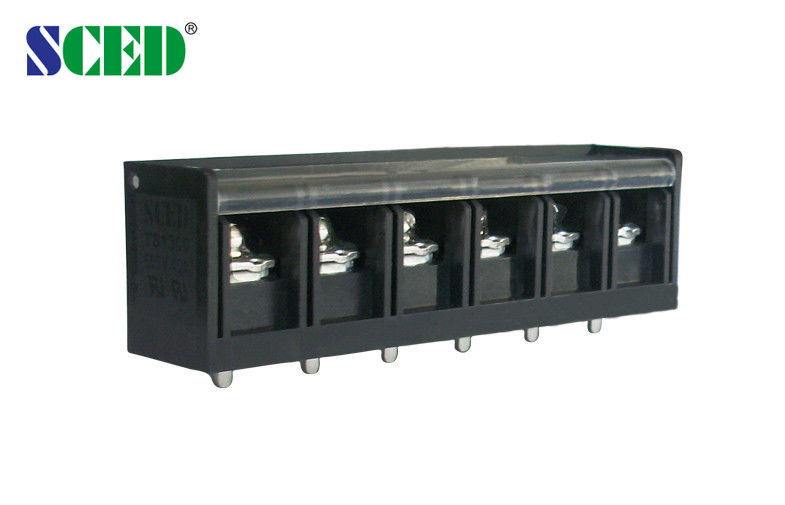

40A 600V PCB Barrier Terminal Block 13.00mm , Right Angle Wire Inlet
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B C D |
|
Rated Voltage / Current V/A |
600/ 40 600/ 40 600 / 5 |
|
Wire Range AWG |
20-8 20-8 |
|
IEC Technical Data |
|
|
Overvoltage Category |
Ⅲ Ⅲ Ⅱ |
|
Contamination Class |
3 2 2 |
|
Rated Voltage / Current V/A |
800 /40 1000 / 40 1000 / 40 |
|
Rated Surge Voltage KV |
8 8 8 |
|
Rated Connecting Capacity mm2 |
4 |
|
Material |
|
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
|
Terminal / Plating |
Brass Tin / Plated |
|
Screw / Plating |
Steel / Nickel Plated |
|
Other Data |
|
|
PCB Hole Diameter mm |
φ2.5 |
|
Stripping Length mm |
10-11 |
|
Screw / Torque / lbf.in |
M 4 / 10.6-13 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
