| Type: | Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks | Pitch: | 11.00mm |
|---|---|---|---|
| Number Of Contacts: | 2P-22P | Wire Range: | 10-18 |
| Rated Voltage: | 300V | Rated Current: | 15A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | electrical terminal block,barrier type terminal block |
||

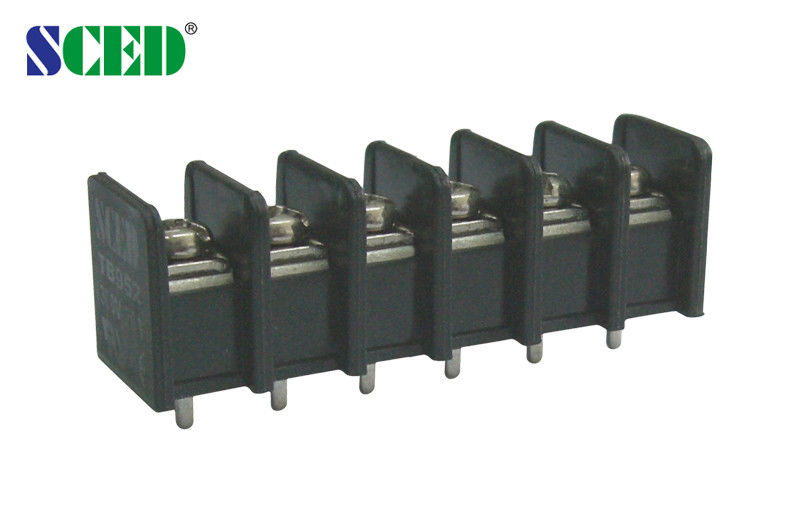

Pitch 11.00mm Barrier Terminal Block, 300V 15A 2P - 22P Power Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
How to order:
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/30 |
| 300/10 |
Wire Range AWG | 10-18 |
| 10-18 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 630 / 41 | 800 / 41 | 1000 / 41 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 6 | ||
Material |
| ||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ2.6 | ||
Stripping Length mm | 9-10 | ||
Screw / Torque / lbf.in | M 4 / 10-13 | ||
