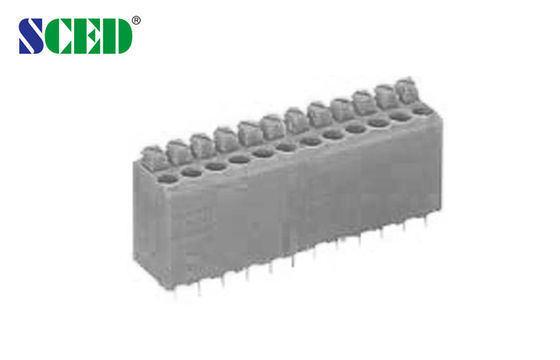

3.81mm Pitch PCB Spring Screwless Terminal block , 16 - 20 AWG 300V 10A , 2P - 28P

3.81mm Pitch PCB Spring Screwless Terminal block , 16 - 20 AWG 300V 10A , 2P - 28P

Products - Screwless Terminal Block
  • Highlight

    screwless terminal block connector

    ,

    spring terminal blocks

  • Type
    Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto
  • Pitch
    3.81mm
  • Number Of Contacts
    2P-28P
  • Wire Range
    16-20
  • Rated Voltage
    300V
  • Rated Current
    10A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ381-06
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

3.81mm Pitch PCB Spring Screwless Terminal block , 16 - 20 AWG 300V 10A , 2P - 28P

  • 3.81mm Pitch PCB Spring Screwless Terminal block , 16 - 20 AWG 300V 10A , 2P - 28P
  • 3.81mm Pitch PCB Spring Screwless Terminal block , 16 - 20 AWG 300V 10A , 2P - 28P
Get Price Contact Now

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Detailed product Description:
3.81mm Pitch PCB Spring Screwless Terminal block, 16-20 AWG 300V 10A, 2P-28P
□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

PCB Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory


How to order:

3.81mm Pitch PCB Spring Screwless Terminal block , 16 - 20 AWG 300V 10A , 2P - 28P 0


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10





Wire Range                       AWG

16-20





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.2

Stripping Length                    mm

9-10







3.81mm Pitch PCB Spring Screwless Terminal block , 16 - 20 AWG 300V 10A , 2P - 28P 1




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
