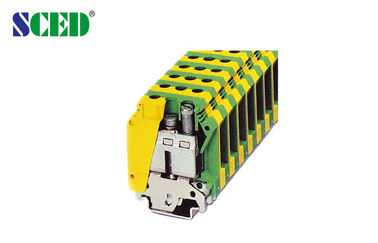

Rail Mounted Terminal Blocks , 15.2mm Rail Terminal Connectors

Rail Mounted Terminal Blocks , 15.2mm Rail Terminal Connectors

Products - Rail Mounted Terminal Blocks
  • Highlight

    rail mount terminal block

    ,

    din rail mount terminal blocks

  • Wire Inlet
    Right Angle Wire Inlet
  • Terminal Width
    15.2mm
  • Deck
    Single Deck
  • Type
    Rail Mounted Terminal Blocks, Electrical Terminal Blocks, Terminal Block Connectors
  • Wire Range
    18-1/0
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-KG35N
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Rail Mounted Terminal Blocks , 15.2mm Rail Terminal Connectors

  • Rail Mounted Terminal Blocks , 15.2mm Rail Terminal Connectors
  • Rail Mounted Terminal Blocks , 15.2mm Rail Terminal Connectors
Get Price Contact Now

Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                    Green & Yellow

TR-KG35N

Zack Strip                      White

ZB10         SZS1.0x6.5

Rail Material

Aluminum / Steel

Dimensions

15.2/50

Height (U35: 7.5/U35: 15G 32)              mm

62/69.5/67

Wire Fixing Screw / Torque                 Nm

M6 / 3.2-3.7

Center Fixing Screw / Torque                Nm

M5 / 2.5-3

Stripping Length                          mm

15







Applications:



Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..





Detailed product Description:



 Terminal Width: 15.2mm, AWG:18-1/0, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks







Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





How to order:



 Rail Mounted Terminal Blocks , 15.2mm Rail Terminal Connectors 0
