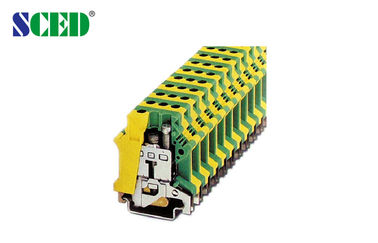

Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks

Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks

Products - Rail Mounted Terminal Blocks
  • Highlight

    rail mount terminal block

    ,

    grounding terminal block

  • Wire Inlet
    Right Angle Wire Inlet
  • Terminal Width
    12.2mm
  • Type
    Rail Mounted Terminal Blocks, Electrical Terminal Blocks, Terminal Block Connectors
  • Wire Range
    22-4
  • Color
    Grey
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-KG16N
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks

  • Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks
  • Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks
Get Price Contact Now


How to order:

 Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks 0


Detailed product Description:

 Terminal Width: 12.2mm, AWG:22-4, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks


Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                       Grey

TR-35N

End Cover                      Grey




Fixed Bridge


FBI 2-15        Imax: 135A

Insertion Bridge


FBI 3-15        Imax:120A

Separating Plate


TS-K

Partition Plate


TP-TR-35(7.5mm thick)

Zack Strip                      White

ZB10

Screwdriver

SZS 1.0×6.5

Rail Material

aluminum

Dimensions                             mm

15.2/55/-

Height (U35: 7.5/U35: 15G 32)              mm

58.5/51/59

Screw / Torque                           Nm

M6 / 3.2-3.7

Stripping Length                          mm

16

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

125 / 35

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category

Ⅲ






Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
