Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

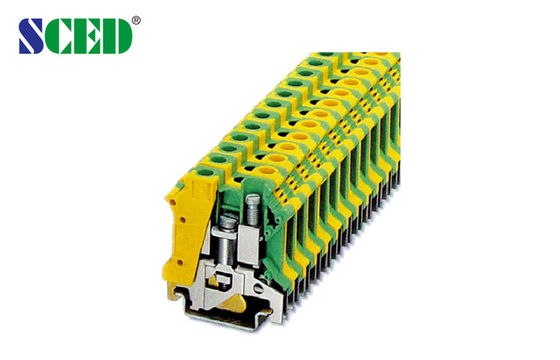

Terminal Width: 10.2mm, AWG:24-6, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
Detailed product Description:
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
How to order:
Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Green & Yellow |
TR-KG10N |
|
Zack Strip White |
ZB10 SZS1.0x4.0 |
|
Rail Material |
Aluminum / Steel |
|
Dimensions |
10.2/42.5 |
|
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
|
Wire Fixing Screw / Torque Nm |
M4 / 1.5-1.8 |
|
Center Fixing Screw / Torque Nm |
M4 / 1.5-1.8 |
|
Stripping Length mm |
10 |
Competitive Advantage:
