| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TB952-00F-D3 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Black |
|---|---|---|---|
| Number Of Contacts: | 2P-22P | Pitch: | 9.525mm |
| Rated Current: | 15A | Rated Voltage: | 300V |
| Type: | Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks | Wire Range: | 12-22 |
| High Light: | electrical terminal block,pcb terminal blocks |
||

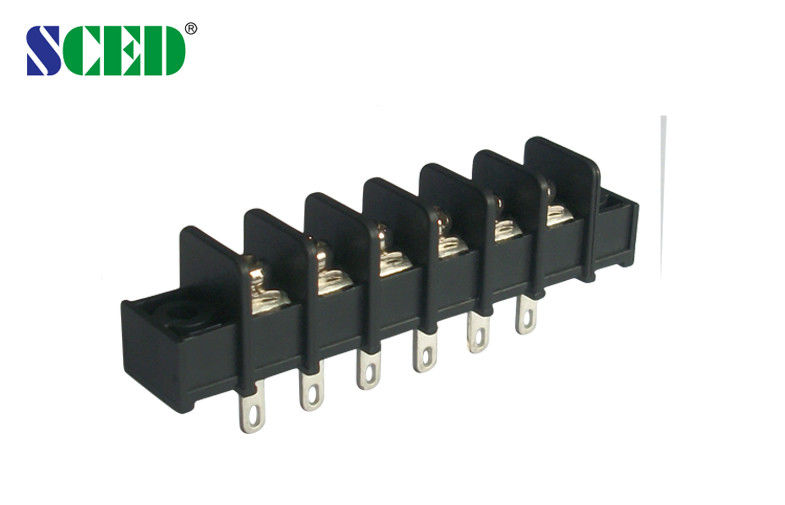

300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300/20 |
|
300/10 |
|
Wire Range AWG |
12-22 |
|
12-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
500 / 32 |
630 / 32 |
800 / 32 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
4 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.2x4.0 |
||
|
Stripping Length mm |
8-9 |
||
|
Screw / Torque / lbf.in |
M 4 / 10-13 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Contact Person: Liceen Cheng
Tel: +8618118782877
Fax: +86-755-28769522
