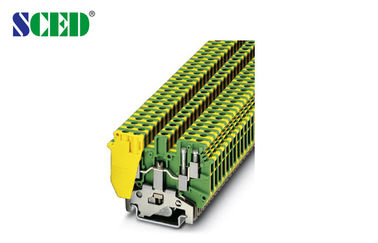

6.2mm AWG 30 - 10 , Rail Mounted Terminal Blocks For Electric Power , Elevator

6.2mm AWG 30 - 10 , Rail Mounted Terminal Blocks For Electric Power , Elevator

Products - Rail Mounted Terminal Blocks
  • Highlight

    rail mount terminal block

    ,

    din rail mount terminal blocks

  • Wire Inlet
    Right Angle Wire Inlet
  • Terminal Width
    6.2mm
  • Type
    Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks
  • Wire Range
    30-10
  • Color
    Grey
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-KG4N
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

6.2mm AWG 30 - 10 , Rail Mounted Terminal Blocks For Electric Power , Elevator

  • 6.2mm AWG 30 - 10 , Rail Mounted Terminal Blocks For Electric Power , Elevator
  • 6.2mm AWG 30 - 10 , Rail Mounted Terminal Blocks For Electric Power , Elevator
Get Price Contact Now

Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                    Green & Yellow

TR-KG4N

Zack Strip                      White

ZB6 SZS0.6x3.5

Rail Material

Aluminum / Steel

Dimensions

6.2/63.5

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52.5

Wire Fixing Screw / Torque                 Nm

M3 / 0.6-0.8

Center Fixing Screw / Torque                Nm

M3 / 0.6-0.8

Stripping Length                          mm

8





Detailed product Description:



Terminal Width: 6.2mm, AWG:30-10, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks







How to order:



 6.2mm AWG 30 - 10 , Rail Mounted Terminal Blocks For Electric Power , Elevator 0





Applications:



Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
