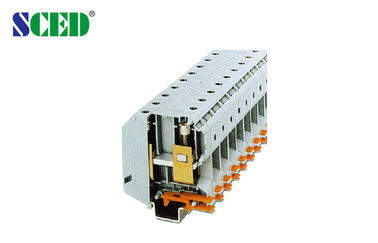

25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet

25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet

Products - Rail Mounted Terminal Blocks
  • Highlight

    rail mount terminal block

    ,

    grounding terminal block

  • Wire Inlet
    Right Angle Wire Inlet
  • Terminal Width
    25.0mm
  • Type
    Rail Mounted Terminal Blocks, Electrical Terminal Blocks, Terminal Block Connectors
  • Wire Range
    2-4/0
  • Rated Voltage
    600V
  • Rated Current
    230A
  • Color
    Grey
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-H95
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet

  • 25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet
  • 25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet
Get Price Contact Now





Parameter and Drawing Specifications:


Description                    Color

Type

Terminal                       Grey

TR-H95

End Cover                      Grey




Fixed Bridge


EB 2-25/TR-H        Imax: 232A
FBI 3-25/TR-H

Insertion Bridge




Separating Plate




Partition Plate




Zack Strip                      White

ZB10

Screwdriver



Rail Material

aluminum

Dimensions                             mm

25/83

Height (U35: 7.5/U35: 15G 32)              mm

97.5/95.5

Screw / Torque                           Nm

M8 / 15-20

Stripping Length                          mm

33

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             232 / 95

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

               Ⅲ





Detailed product Description:

Terminal Width: 25.0mm, 600V 230A, AWG:2-4/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





How to order:

 25.0mm , AWG 2 - 4 / 0 , Din Rail Terminal Blocks With Right Angle Wire Inlet 5



Applications:


Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
