20.0mm Din Rail Mounted Terminal Blocks , High Current PCB Terminal Block 600V 150A

20.0mm Din Rail Mounted Terminal Blocks , High Current PCB Terminal Block 600V 150A

  • Highlight

    rail mount terminal block

    ,

    din rail mount terminal blocks

  • Wire Inlet
    Right Angle Wire Inlet
  • Terminal Width
    20.0mm
  • Type
    Rail Mounted Terminal Blocks, Electrical Terminal Blocks, Terminal Block Connectors
  • Wire Range
    25.0mm
  • Rated Voltage
    600V
  • Rated Current
    150A
  • Color
    Grey
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-H50
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

20.0mm Din Rail Mounted Terminal Blocks , High Current PCB Terminal Block 600V 150A

20.0mm Din Rail Mounted Terminal Blocks , High Current PCB Terminal Block 600V 150A


Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Detailed product Description:

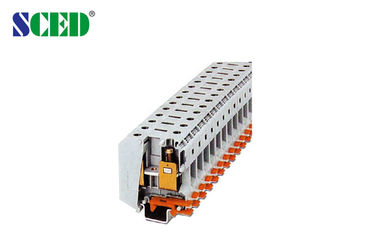

Terminal Width: 20.0mm, 600V 150A, AWG:C, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





How to order:

 20.0mm Din Rail Mounted Terminal Blocks , High Current PCB Terminal Block 600V 150A 0


 Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                       Grey

TR-H50

End Cover                      Grey




Fixed Bridge


FBI 2-20      Imax: 150A
FBI 3-20

Insertion Bridge


EB 10-15     Imax:110A

Separating Plate




Partition Plate




Zack Strip                      White

ZB10

Screwdriver

SZS 1.2×8.0

Rail Material

aluminum

Dimensions                             mm

20/70.5

Height (U35: 7.5/U35: 15G 32)              mm

83.5/81.5

Screw / Torque                           Nm

M6 / 6-8

Stripping Length                          mm

24

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             150 / 150

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

               Ⅲ
