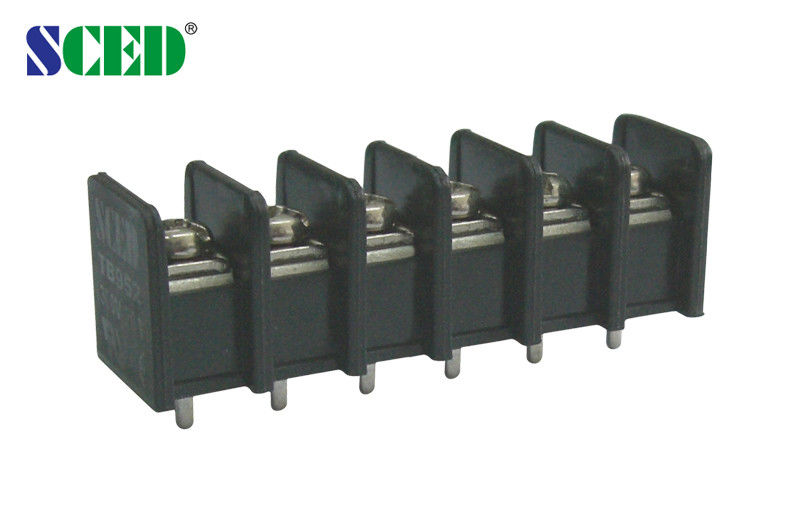

Single Level Barrier PCB Terminal Block Right Angle Pitch 9.525mm 300V 20A

Single Level Barrier PCB Terminal Block Right Angle Pitch 9.525mm 300V 20A

Products - Barrier Terminal Block
  • Highlight

    electrical terminal block

    ,

    pcb terminal blocks

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    2P-24P
  • Pitch
    9.525mm
  • Rated Current
    20A
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    12-22
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB952-00
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Single Level Barrier PCB Terminal Block Right Angle Pitch 9.525mm 300V 20A

  • Single Level Barrier PCB Terminal Block Right Angle Pitch 9.525mm 300V 20A
  • Single Level Barrier PCB Terminal Block Right Angle Pitch 9.525mm 300V 20A
  • Single Level Barrier PCB Terminal Block Right Angle Pitch 9.525mm 300V 20A
Get Price Contact Now


Single Level Barrier PCB Terminal Block Right Angle Pitch 9.525mm 300V 20A

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:
Single Level Barrier PCB Terminal Block Right Angle Pitch 9.525mm 300V 20A 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
