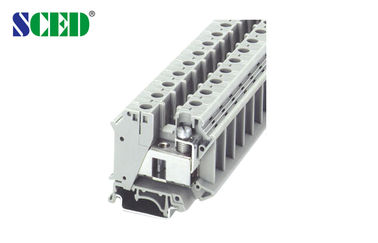

15.2mm 600V 115A Din Grounding Terminal Block For Industry Control

15.2mm 600V 115A Din Grounding Terminal Block For Industry Control

  • 15.2mm 600V 115A Din Grounding Terminal Block For Industry Control
15.2mm 600V 115A Din Grounding Terminal Block For Industry Control
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-35N
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: Right Angle Wire Inlet Terminal Width: 15.2mm
Type: Rail Mounted Terminal Blocks, Electrical Terminal Blocks, Terminal Block Connectors Wire Range: 18-2
Rated Voltage: 600V Rated Current: 115A
Color: Grey Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
High Light:

rail mount terminal block

,

grounding terminal block

15.2mm , 600V 115A Rail Mounted Terminal Blocks For Industry Control

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand



Detailed product Description:

Terminal width: 15.2mm, 600V 115A, AWG:18-2, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks


Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                       Grey

TR-35N

End Cover                      Grey




Fixed Bridge


FBI 2-15        Imax: 135A

Insertion Bridge


FBI 3-15        Imax:120A

Separating Plate


TS-K

Partition Plate


TP-TR-35(7.5mm thick)

Zack Strip                      White

ZB10

Screwdriver

SZS 1.0×6.5

Rail Material

aluminum

Dimensions                             mm

15.2/55/-

Height (U35: 7.5/U35: 15G 32)              mm

58.5/51/59

Screw / Torque                           Nm

M6 / 3.2-3.7

Stripping Length                          mm

16

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

125 / 35

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category



How to order:

 15.2mm 600V 115A Din Grounding Terminal Block For Industry Control 5
