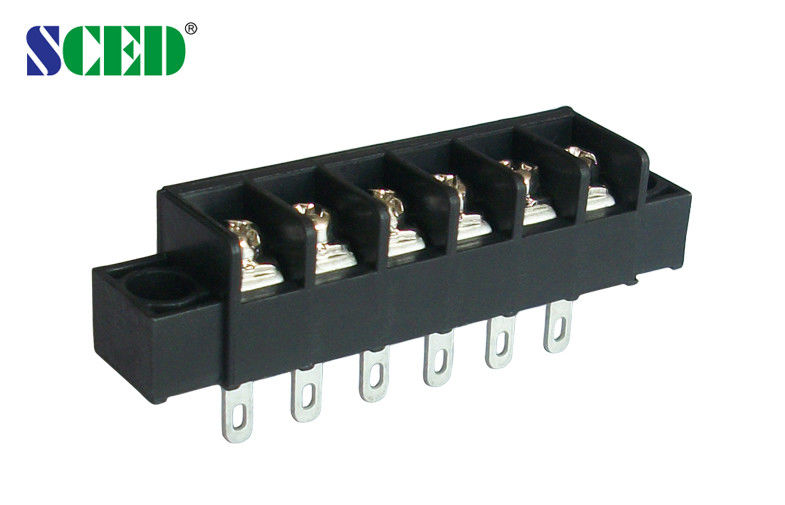

300V 10A Barrier Terminal Block For PCB, Frequency Converters

300V 10A Barrier Terminal Block For PCB, Frequency Converters

  • Highlight

    electrical terminal block

    ,

    barrier type terminal block

  • Wire Inlet
    Right Angle Wire Inlet
  • Color
    Black
  • Number Of Contacts
    2P-22P
  • Pitch
    7.62mm
  • Rated Current
    10A
  • Rated Voltage
    300V
  • Type
    Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    14-22
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TB762-02F-D3
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300V 10A Barrier Terminal Block For PCB, Frequency Converters





300V 10A Barrier Terminal Block For PCB, Frequency Converters





Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand



Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                       AWG

14-22



14-22

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



PCB Hole Diameter                 mm

1.2x3.4

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M 3 / 5-7


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the
color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


How to order:


300V 10A Barrier Terminal Block For PCB, Frequency Converters 0
300V 10A Barrier Terminal Block For PCB, Frequency Converters 1
