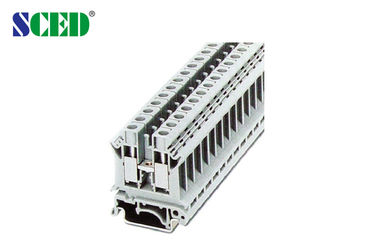

10.2mm Rail-Mounted Terminal Blocks , AWG 24 - 6 600V 65A Barrier Terminal Block

10.2mm Rail-Mounted Terminal Blocks , AWG 24 - 6 600V 65A Barrier Terminal Block

    • 10.2mm Rail-Mounted Terminal Blocks , AWG 24 - 6 600V 65A Barrier Terminal Block
  • 10.2mm Rail-Mounted Terminal Blocks , AWG 24 - 6 600V 65A Barrier Terminal Block

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-10N

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Wire Inlet: Right Angle Wire Inlet Terminal Width: 10.2mm
    Type: Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks Wire Range: 24-6
    Rated Voltage: 600V Rated Current: 65A
    Color: Black Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
    High Light:

    din rail mount terminal blocks

    ,

    grounding terminal block

    Detailed product Description:
    10.2mm Rail-Mounted Terminal Blocks , AWG 24-6 600V 65A Barrier Terminal Block, Din Rail Terminal Blocks,  Compact Din Rail Mount Terminal Blocks
    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Level;  □Double levels;  □Triple levels
    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors




    How to order:
    10.2mm Rail-Mounted Terminal Blocks , AWG 24 - 6 600V 65A Barrier Terminal Block 0


    Applications:
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
    Parameter and Drawing Specifications:


    Description                    Color

    Type

    Terminal                       Grey

    TR-10N

    End Cover                      Grey


    D-TR-3/16

    Fixed Bridge


    FBI 10-10        Imax: 76A

    Insertion Bridge


    EB 10-10         Imax: 76A

    Separating Plate


    TS-K

    Partition Plate


    ATP-TR

    Zack Strip                      White

    ZB10

    Screwdriver

    SZS 1.0×4.0

    Rail Material

    aluminum

    Dimensions                             mm

    10.2/42.5/2

    Height (U35: 7.5/U35: 15G 32)              mm

    47/54.5/52

    Screw / Torque                           Nm

    M4 / 1.5-1.8

    Stripping Length                          mm

    10

    IEC Technical Data



    Max. Load Current / Cross Section         A / mm2

    76 / 16

    Rated Surge Voltage / Contamination Class    KV / -

    8 / 3

    Surge Voltage Category









    Competitive Advantage:


    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
