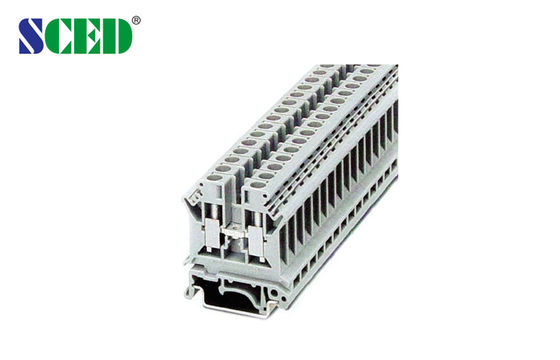

50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting

50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting

  • Highlight

    din rail mount terminal blocks

    ,

    grounding terminal block

  • Wire Inlet
    Right Angle Wire Inlet
  • Terminal Width
    8.2mm
  • Type
    Rail Mounted Terminal Blocks, Electrical Terminal Blocks, Terminal Block Connectors
  • Wire Range
    26-8
  • Rated Voltage
    600V
  • Rated Current
    50A
  • Color
    Black
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-6N
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting

Detailed product Description:




8.2mm 600V 50A AWG 26-8 Din Rail Mounted Terminal Blocks for Electric Lighting


■ Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■ Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:


Description                    Color

Type

Terminal                       Grey

TR-6N

50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting 1End Cover                      Grey


D-TR-3/16

50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting 2Fixed Bridge


FBI 10-8        Imax: 57A

50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting 3Insertion Bridge


EB 10-8        Imax: 57A

50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting 4Separating Plate


TS-K

50A AWG 26 - 8 Din Rail Mounted Terminal Blocks 8.2mm 600V for Electric Lighting 5Partition Plate


ATP-TR

Zack Strip                      White

ZB8

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions                             mm

8.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M4 / 1.5-1.8

Stripping Length                          mm

10

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

57 / 10

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category







Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
