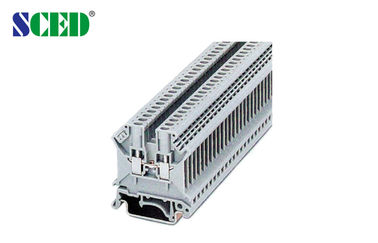

5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block

5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block

Products - Rail Mounted Terminal Blocks
  • Highlight

    din rail mount terminal blocks

    ,

    grounding terminal block

  • Wire Inlet
    Right Angle Wire Inlet
  • Terminal Width
    5.2mm
  • Type
    Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks
  • Wire Range
    28-12
  • Rated Voltage
    600V
  • Rated Current
    20A
  • Color
    Black
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-3N
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block

  • 5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block
  • 5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block
Get Price Contact Now

Detailed product Description:

5.2mm Width Rail Mounted Terminal Blocks, 600V 20A AWG 28-12 Din Rail Terminal Block,Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
5.2mm Width Rail Mounted Terminal Blocks , 600V 20A AWG 28 - 12 Din Rail Terminal Block 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


Description                    Color

Type

Terminal                       Grey

TR-3N

End Cover                      Grey


D-TR-3/16

Fixed Bridge


FBI 10-5         Imax: 30A

Insertion Bridge


EBL 10-5        Imax: 24A

Separating Plate


TS-K

Partition Plate


ATP-TR

Zack Strip                      White

ZB5

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

5.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

32 / 4

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category

Ⅲ








Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
