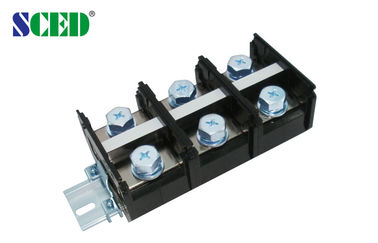

47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters
-
Highlight
rail mount terminal block
,din rail mount terminal blocks
-
Wire InletRight Angle Wire Inlet
-
TypeRail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks
-
Pitch47.00mm
-
Wire Range4-350Kcmil
-
Rated Voltage600V
-
Rated Current300A
-
ColorBlack
-
ApplicationsPower Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR300-02-FaM0
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 300 | 600 / 300 |
|
Wire Range AWG | 4-350Kcmil | 4-350Kcmil |
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 /300 | 1000 / 300 | 1000 / 300 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 150 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 19-21 | ||
Screw Torque mm | M10 /50-60 | ||
Detailed product Description:
47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters, any pole available
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
