| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR175-01-FaM0 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks | Pitch: | 32.00mm |
|---|---|---|---|
| Number Of Contacts: | 2P-20P | Wire Range: | 3/0-20 |
| Rated Voltage: | 600V | Rated Current: | 175A |
| Color: | Black | Applications: | Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev |
| High Light: | rail mount terminal block,grounding terminal block |
||
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 175 | 600 / 175 |
|
Wire Range AWG | 3/0-20 | 3/0-20 |
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 /175 | 1000 / 175 | 1000 / 175 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 80 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 14-18 | ||
Screw Torque mm | M8/31-40 | ||
Detailed product Description:

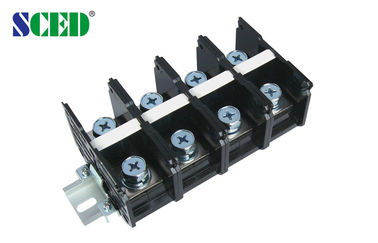

600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P-20P, any pole available
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
