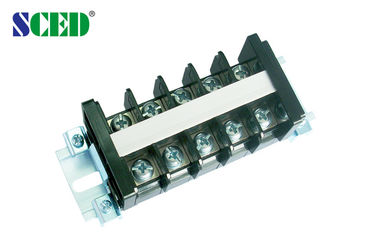

600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG

600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG

  • Highlight

    rail mount terminal block

    ,

    din rail mount terminal blocks

  • Type
    Rail Mounted Terminal Blocks, Electrical Terminal Blocks, Terminal Block Connectors
  • Pitch
    14.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    4-20
  • Rated Voltage
    600V
  • Rated Current
    60A
  • Color
    Black
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR60-01-FaM0-N7
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG


600V 60A Rail Mounted Terminal Block, 14.00mm Electrical Terminal Blocks 4-20 AWG, any pole available,

High Current Terminal connectors
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                       AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /60

1000 / 60

1000 / 60

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

14

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

12-15

Screw Torque                    mm

M6 / 18-22


How to order:
600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





 600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG 1




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
