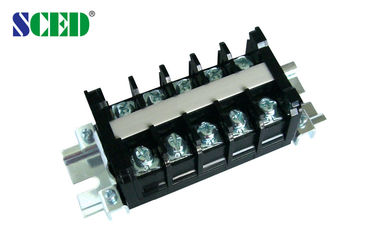

Pitch 14.00mm Rail Mounted Barrier Terminal Block for PCB , Power Supply 600V 40A

Pitch 14.00mm Rail Mounted Barrier Terminal Block for PCB , Power Supply 600V 40A

  • Pitch 14.00mm Rail Mounted Barrier Terminal Block for PCB , Power Supply 600V 40A
Pitch 14.00mm Rail Mounted Barrier Terminal Block for PCB , Power Supply 600V 40A
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR40-01-FaM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: Right Angle Wire Inlet Type: Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks
Pitch: 14.00mm Wire Range: 12-24
Rated Voltage: 600V Rated Current: 40A
Color: Black Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
Highlight:

din rail mount terminal blocks

,

grounding terminal block

Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Pitch 14.00mm Rail Mounted Barrier Terminal Block for PCB , Power Supply 600V 40A




Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors



Pitch 14.00mm Rail Mounted Barrier Terminal Block for PCB , Power Supply 600V 40A 0




Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 20

600 / 20



Wire Range                       AWG

12-24

12-24



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /20

1000 / 20

1000 / 20

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

2

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

10-12

Screw Torque                    mm

M5 / 14-18




How to order:


Pitch 14.00mm Rail Mounted Barrier Terminal Block for PCB , Power Supply 600V 40A 1
