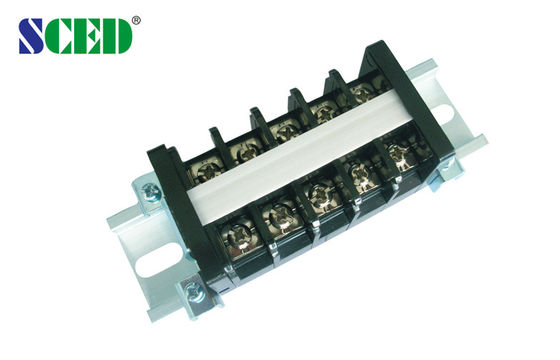

600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available

600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available

Products - Rail Mounted Terminal Blocks
  • Highlight

    rail mount terminal block

    ,

    din rail mount terminal blocks

  • Type
    Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks
  • Pitch
    12.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    10-20
  • Rated Voltage
    600V
  • Rated Current
    30A
  • Color
    Black
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR30-02-FaM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available

  • 600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available
  • 600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available
Get Price Contact Now

Detailed product Description:

600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors




How to order:
600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available 1




Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 30

600 / 30



Wire Range                       AWG

10-20

10-20



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 30

800 / 30

1000 / 30

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

5.5

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M4 / 10.6-13
