Type: | Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks | Pitch: | 7.62mm |
---|---|---|---|
Number Of Contacts: | 2P-24P | Wire Range: | 14-22 |
Rated Voltage: | 300V | Rated Current: | 15A |
Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
Highlight: | electrical terminal block,pcb terminal blocks |

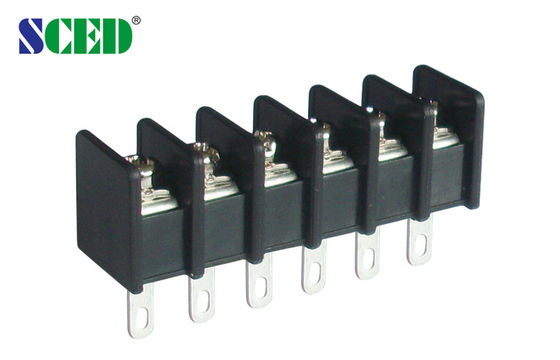

Right Angle Barrier Terminal Block, 300V 15A Pitch 7.62mm Power Terminal Blocks 2P-24P
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the
color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/15 |
| 300/10 |
Wire Range AWG | 14-22 |
| 14-22 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 250 / 24 | 320 / 24 | 400 / 24 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 2.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PBT / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | 1.2x3.4 | ||
Stripping Length mm | 7-8 | ||
Screw / Torque / lbf.in | M 3 / 5-7 |
