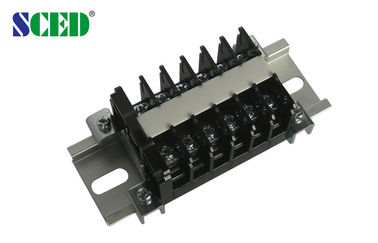

8.00mm Rail Mounted Terminal Blocks , 600V 10A Barrier Terminal Block With Any Poles

8.00mm Rail Mounted Terminal Blocks , 600V 10A Barrier Terminal Block With Any Poles

  • 8.00mm Rail Mounted Terminal Blocks , 600V 10A Barrier Terminal Block With Any Poles
8.00mm Rail Mounted Terminal Blocks , 600V 10A Barrier Terminal Block With Any Poles
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR10-00-FaM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Rail Mounted Terminal Blocks,Barrier Terminal Blocks, Power Terminal Blocks Pitch: 8.00mm
Number Of Contacts: Any Poles Available Rated Voltage: 600V
Rated Current: 10A Color: Black
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Wire Inlet: Right Angle Wire Inlet
High Light:

rail mount terminal block

,

din rail mount terminal blocks


 8.00mm Rail Mounted Terminal Blocks , 600V 10A Barrier Terminal Block With Any Poles


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors


How to order:
8.00mm Rail Mounted Terminal Blocks , 600V 10A Barrier Terminal Block With Any Poles 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 10

600 / 10



Wire Range                       AWG

16-24

16-24



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /10

1000 / 10

1000 / 10

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

1.25

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

5-6

Screw Torque                    mm

M 3 / 5.3-7

8.00mm Rail Mounted Terminal Blocks , 600V 10A Barrier Terminal Block With Any Poles 1








Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
