| Place of Origin: | Guangdong China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL,CQC,VDE etc. |
| Model Number: | TP381H-00 |
| Minimum Order Quantity: | 500 Piece/Pieces |
|---|---|
| Price: | USD 0.016-0.032 per pcs |
| Packaging Details: | 5-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Color: | Green | Pitch: | 3.81mm |
|---|---|---|---|
| Poles: | 2-24 Poles | Current: | 300V |
| Volt: | 18A | Plastic: | PA66 |
| Terminal: | Brass | Inflammability Class: | UL94-V0 |
| Plating: | Tin Plated | Rated Surge Voltage: | 4 KV |
| High Light: | Plug In Terminal Block Pitch 3.81mm,PA66 Plastic Plug In Terminal Block,PA66 Plastic Pluggable Terminal Blocks |
||

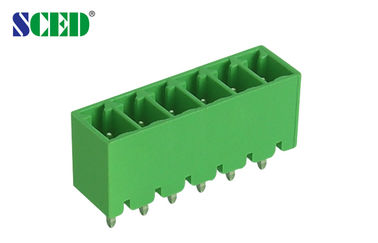

Pitch 3.81mm Pluggable Terminal Block 2-24 Poles Green Plastic Male Part
Detailed product Description:
Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-24P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07
Standard color: Green. Other colors also available.
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

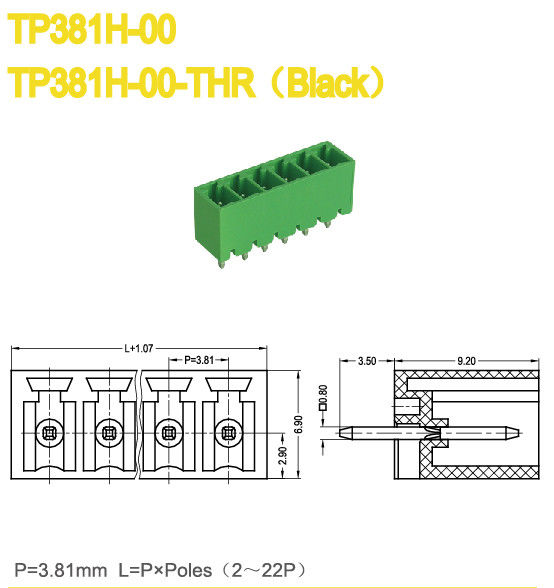

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 18 |
|
|
|
Wire Range AWG |
|
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 18 |
400 / 18 |
500 / 18 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ1.4 |
||
|
PinDimension mm |
1.0 x 1.0 |
||
Competitive Advantage:
