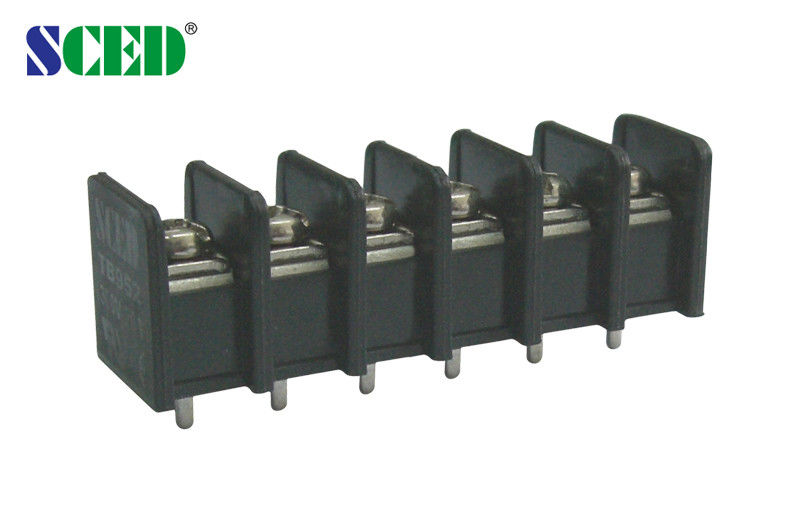

UL94-V0 Brass Black PCB Terminal Blocks 20A / 300V M4 Screw 9.525mm Pitch

UL94-V0 Brass Black PCB Terminal Blocks 20A / 300V M4 Screw 9.525mm Pitch

  • UL94-V0 Brass Black PCB Terminal Blocks 20A / 300V M4 Screw 9.525mm Pitch
  • UL94-V0 Brass Black PCB Terminal Blocks 20A / 300V M4 Screw 9.525mm Pitch
UL94-V0 Brass Black PCB Terminal Blocks 20A / 300V M4 Screw 9.525mm Pitch
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: UL,CE,CUL,CQC and VDE etc.
Model Number: TB952-00
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.048-0.11
Packaging Details: Standard export packing carton, or according to customers demand
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Color: Black Screw: M4
Torque: 10-13 Lbf.in Plastic: PBT
Poles: 2-24 Poles Current: 20A
Voltage: 300V Pitch: 9.525mm
High Light:

Brass PBT PCB Terminal Blocks

,

Plastic PBT PCB Terminal Blocks

,

9.525mm Pitch Barrier Terminal Block

Black Barrier Terminal Block 20A/300V M4 Screw 9.525mm Pitch



Detailed product Description:



Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet

■Single Level

Standard color: Black. Other colors also available, you can order and select the color you want, such as grey, blue, green etc.

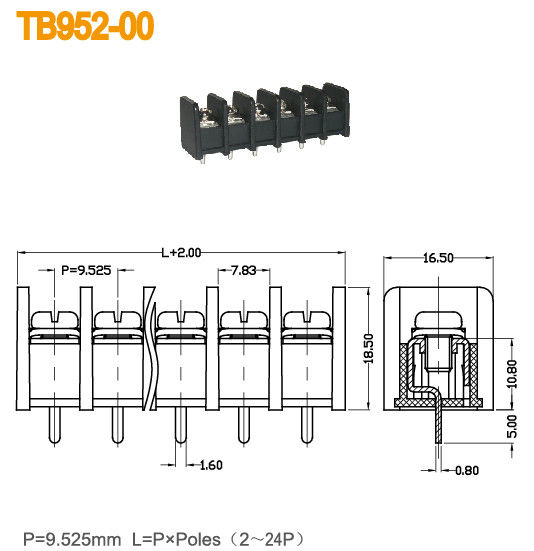

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/20   300/10
Wire Range AWG 12-22   12-22
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 32 630 / 32 800 / 32
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 4
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.2
Stripping Length mm 8-9
Screw / Torque / lbf.in M 4/ 10-13



Competitive Advantage:



  1. Good quality and reasonable price
  2. Quick response and good after-sales service
  3. More than 1000 models for selection
  4. OEM and ODM servicce

Applications:



Our products can be used in a lot of fileds and industries, such as medical equipment, military, security, power supply, electrical equipment, PCB, industrial control etc.
