Place of Origin: | Guangdong China |
Brand Name: | SCED |
Certification: | UL,CUL, CE, VDE etc. |
Model Number: | TR-35N-03 |
Minimum Order Quantity: | 500 Piece/Pieces |
---|---|
Price: | USD 0.57-1.24 Per Pole |
Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Delivery Time: | 5-20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000000 Pole/Poles per Month |
Plastic: | PA66 | Clamp Cage: | Steel |
---|---|---|---|
Plating: | Nickel Plating | Terminal Width: | 15.1mm |
Insulation Material: | PA66 | Current: | 75A |
Voltage: | 600V | Screw: | M5 |
Wire Range: | 2-8 AWG | Conduction Board: | Copper |
High Light: | 15.1mm Panel Mount Terminal Connector,75A Panel Mount Terminal Connector,PA66 Panel Mount Terminal Block |

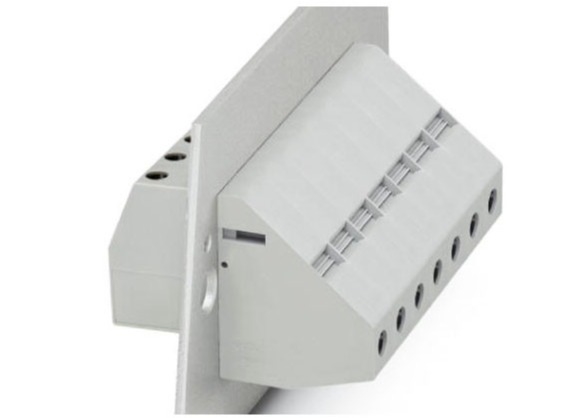

Pluggable 600v 75A Panel Mount Terminal Block 15.1mm Terminal Width
Detailed product Description:
Pitch 15.1mm, 600V 115A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available.
Applications:
1.PCB, Frequency Converters, Server Site, Switch
2.Power Supply, Electric Lighting
3.Industry Control, Automation, Rail Transportation
4.Communication, Electric Power, Security
5.Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 75 |
|
600 / 5 |
Wire Range AWG |
2-8 |
|
2-8 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
630 / 125 |
800 / 125 |
1000 / 125 |
Rated Surge Voltage KV |
6 |
6 |
6 |
Rated Connecting Capacity mm2 |
25 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Steel / Nickel Plated |
||
Conduction Board / Plating |
Copper / Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
19 |
||
Screw / Torque / lbf.in |
M5 / 22-25 |
