14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

Products - High Current Terminal Block
  • Highlight

    wiring terminal blocks

    ,

    power terminal block

  • Pitch
    20.00mm
  • Poles
    4P
  • Voltage
    600V
  • Current
    65A
  • Housing Material
    PA66
  • Conduction Board
    Cooper/Nickel Plated
  • Color
    Black
  • Item
    Feed Through Terminal Connector, High Current Terminal, Panel Mount Terminal Block
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR60-05
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

Get Price Contact Now

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector





Data spec.



UL Technical Data B C D
Rated Voltage / Current V/A 600/65 600/65
Wire Range AWG 3-20 3-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 76 1000 / 76 1000 / 76
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 25
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Conduction Board Plating Cooper/Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 14-16
Screw / Torque / lbf.in M 5 / 14 - 18





Drawing Specifications:







Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:





14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector 0



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

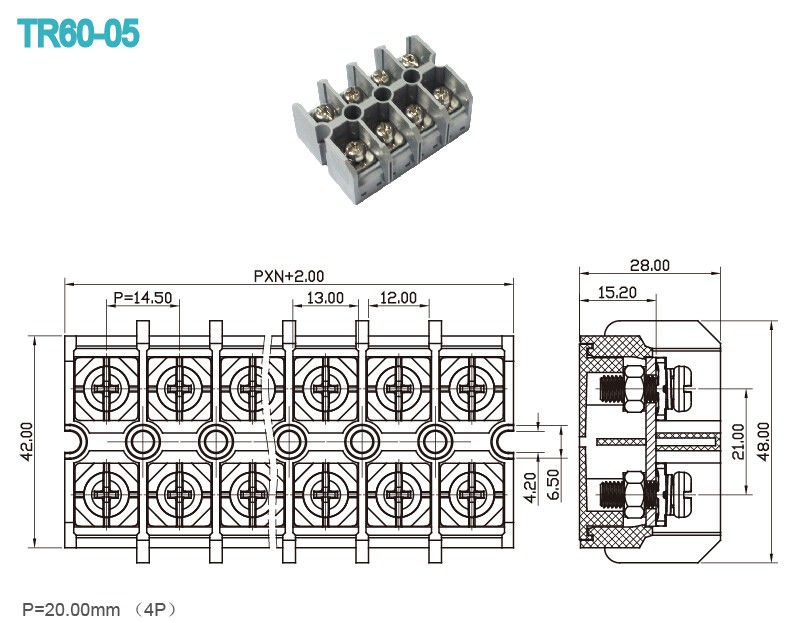

Drawing Photo

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector 1

Factory Photo:



14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector 2

Certificates photo:

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector 3
