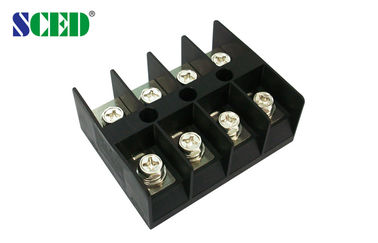

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal

Products - High Current Terminal Block
  • Highlight

    pcb wire terminals

    ,

    wiring terminal blocks

  • Pitch
    20.00mm
  • Poles
    4P
  • Voltage
    600V
  • Current
    100A
  • Housing Material
    PC
  • Application
    Power Supply
  • Color
    Black
  • Item
    Feed Through Terminal Connector, High Current Terminal, Panel Mount Terminal Block
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE, CQC
  • Model Number
    TR100-01-N5
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal

Get Price Contact Now

20.00mm High Current Terminal Block Connector 600V 100A  4 Way PC Black Terminal





Data spec.



UL Technical Data B C D
Rated Voltage / Current V/A 600 / 100 600 / 100
Wire Range AWG 3-20 3-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 /100 1000 / 100 1000 / 100
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 25
Material
Insulation Material / Inflammability Class PC / UL94, V-0
Conduction Board/ Plating Brass /Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 16-18
Screw Torque mm M6 / 18-22

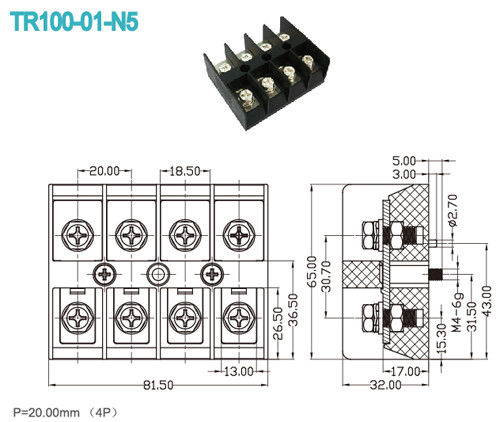

Drawing Specifications:



20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal 0



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.



How to order:





20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal 1



Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Factory Photo:

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal 2

Certificate:

20.00mm High Current Terminal Block Connector 600V 100A 4 Way PC Black Terminal 3
