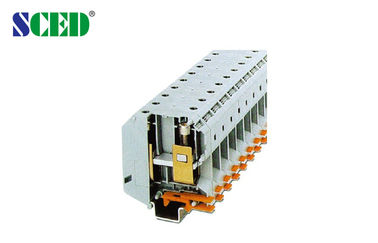

Aluminum Heavy Duty Din Rail Terminal Blocks 600 Volt 230A 25.0mm
-
Highlight
rail mounted terminal blocks
,din rail terminals blocks
-
Rated Current230A
-
Rated Voltage600V
-
ApplicationsPower Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
-
ColorGrey
-
DeckSingle Deck
-
TypeDin Rail Terminal Blocks,Ground Terminal Blocks, Din Rail Terminal Blocks
-
Width25.0mm
-
Wire Range2-4/0
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR-H95
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Aluminum Heavy Duty Din Rail Terminal Blocks 600 Volt 230A 25.0mm
Aluminum Heavy Duty Din Rail Terminal Blocks 600 Volt 230A 25.0mm
Detailed product Description:
600V 230A 25.0mm Aluminum Din Rail Mounted Terminal Blocks AWG: 2-4/0
Compact Din Rail Terminal Blocks, Rail-mounted Terminal Blocks,
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
How to order:
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Grey |
TR-H95 |
|
|
|
|
|
EB 2-25/TR-H Imax: 232A FBI 3-25/TR-H |
|
|
|
|
|
|
|
|
|
|
Zack Strip White |
ZB10 |
|
Screwdriver |
|
|
Rail Material |
aluminum |
|
Dimensions mm |
25/83 |
|
Height (U35: 7.5/U35: 15G 32) mm |
97.5/95.5 |
|
Screw / Torque Nm |
M8 / 15-20 |
|
Stripping Length mm |
33 |
|
IEC Technical Data |
|
|
Max. Load Current / Cross Section A / mm2 |
232 / 95 |
|
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
|
Surge Voltage Category |
Ⅲ |
End Cover Grey
Fixed Bridge
Insertion Bridge
Separating Plate
Partition Plate
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Our services cover all industries and reach all parts of the world.
