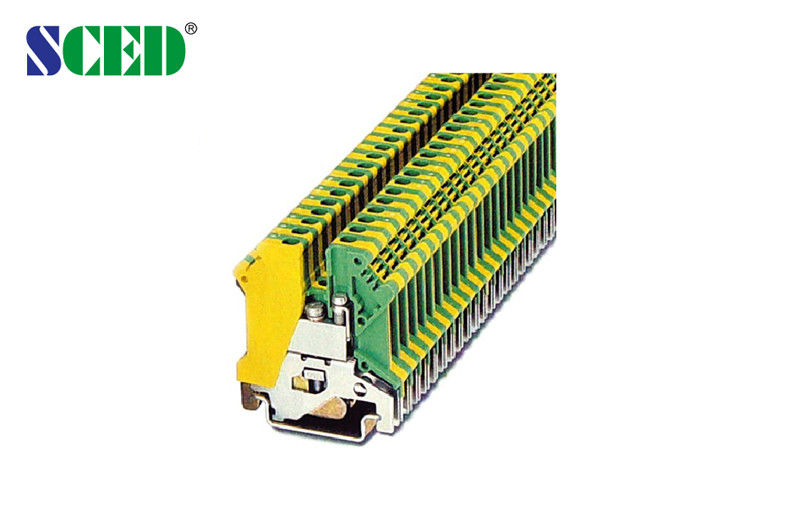

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow

    • Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow
    • Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow
  • Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: SCED
    Certification: UL,CE etc.
    Model Number: TR-KG5N

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.5-1.0 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Terminal Width: 6.2mm Wire Range: 26-10 AWG
    Color: Green And Yellow Stripping Length: 8mm
    Screw: M3 Torque: 0.6-0.8 Nm
    Height: 47/54.5/52 Mm Dimensions: 6.2/42.5mm
    Zack Srtip: ZB6

    Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow



    Detailed product Description:



    Terminal Width: 6.2mm, AWG:26-10, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



    Wire Range:■Right angle wire inlet;

    Decks:■Single Deck;

    Standard color: Green and yellow.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:

    Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow



    Parameter and Drawing Specifications:

    Description Color Type
    Terminal Green & Yellow TR-KG5N
    Zack Strip White ZB6 SZS0.6x3.5
    Rail Material Aluminum / Steel
    Dimensions 6.2/42.5
    Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
    Wire Fixing Screw / Torque Nm M3 / 0.6-0.8
    Center Fixing Screw / Torque Nm M3 / 0.6-0.8
    Stripping Length mm 8



    Applications:

    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



    Competitive Advantage:



    1. Full range products for selection
    2. Flexible to design the exact part per customers’ demand
    3. Stable high quality and competitive price
    4. Quick response and good service

    Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow
