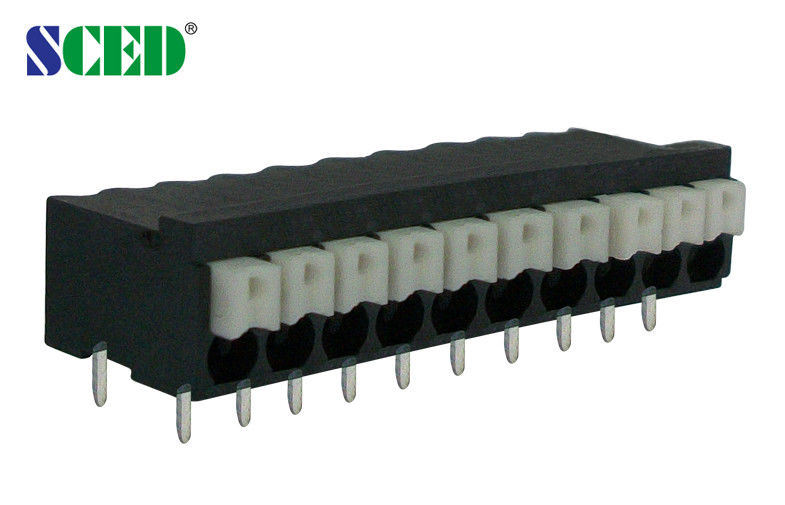

10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0

10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0

    • 10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
    • 10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
    • 10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
  • 10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC and VDE etc.
    Model Number: TJ381-12V

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.051-0.120 Per Pole
    Packaging Details: 1000000 Pole/Poles per Month
    Delivery Time: 5-20 Working days
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 3.5mm Insulation Material: LCP
    Current: 10A Voltage: 300V
    Poles: 2-24 Poles Terminal: Phosphor Bronze
    Insulation Resistance: Above DC500V, 500MΩ Contact Resistance: Less Than 8mΩ
    Inflammability Class: UL94, V-0 Rated Surge Voltage: No Abnormal Within 1 Minute

    10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0



    Detailed product Description:



    Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, Screwless terminals

    ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

    ■Single Deck; □Double decks; □Triple decks

    Standard color: Grey.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0



    Applications:



    Normally our products can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control.

    Besides, they can be also used in Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

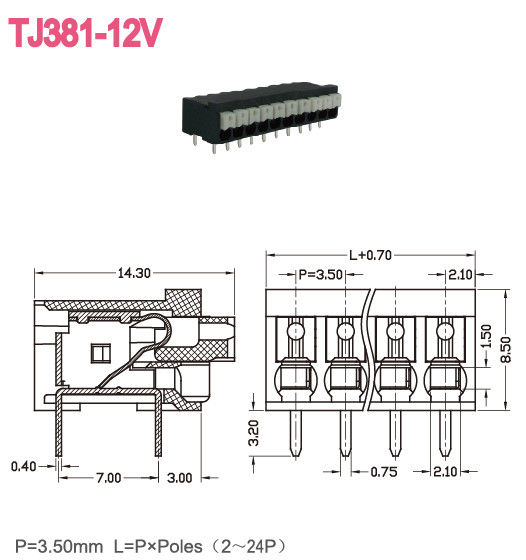

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 300/10
    Wire Range AWG 16-22
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 160 / 10 250 / 10 400 / 10
    Rated Surge Voltage KV 2.5 2.5 2.5
    Rated Connecting Capacity mm2 1.5
    Material
    Insulation Material / Inflammability Class LCP / UL94, V-0
    Spring / Plating Stainless Steel / -
    Terminal / Plating Phosphor Bronze / Tin Plated
    Other Data
    PCB Hole Diameter mm φ1.1
    Stripping Length mm 8-9



    Competitive Advantage:



    We have more than 13 years of expreience in designing, manufacturing and marketing terminal blocks. 10 main series and more than 1000 series for selection. Stable high quality and competitive price. Products have UL, CE, CUL, CQC and VDE etc.



    10A Screwless Spring Terminal Block 3.5mm Pitch Brass 300V 2-28 Poles LCP UL94-V0
