Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

    • Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
    • Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
  • Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TB762-20V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Number Of Contacts: 2P-18P Pitch: 7.62mm
    Rated Current: 15A Rated Voltage: 300V
    Wire Range: 14-22 AWG Color: Black, Other Color Available
    Type: Barrier Terminal Block,Power Terminal Blocks, Electrical Terminal Blocks Application: PCB, Frequency Converters, Server Site, Switch,etc

    Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE



    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 15



    300 / 10

    Wire Range                               AWG

    14-22



    14-22

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                 V/A

    500 / 24

    630 / 24

    800 / 24

    Rated Surge Voltage                     KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass /Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                   mm

    φ1.9

    Stripping Length                       mm

    7-8

    Screw / Torque                        / lbf.in

    M 3 / 5-7

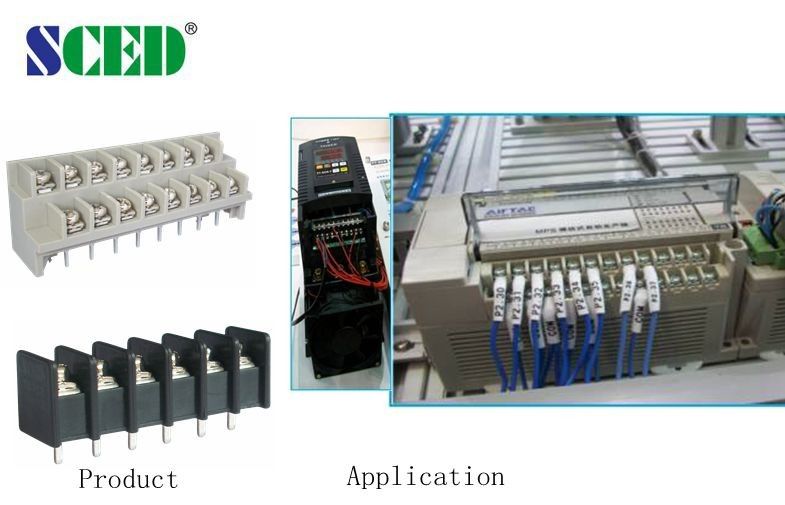

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





    Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:

     Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE





    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

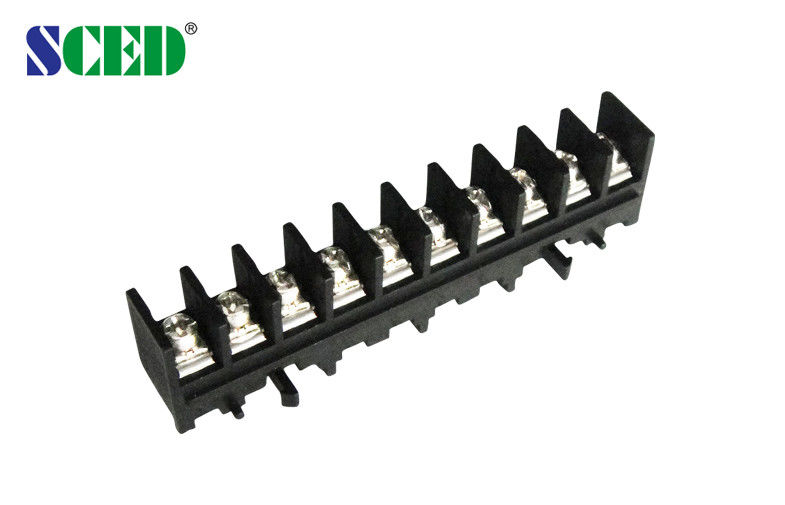

    Drawing Photo

    Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE



    Long Single Pin Connector 300V Barrier Terminal Block Electrical 7.62mm Pitch UL CE
