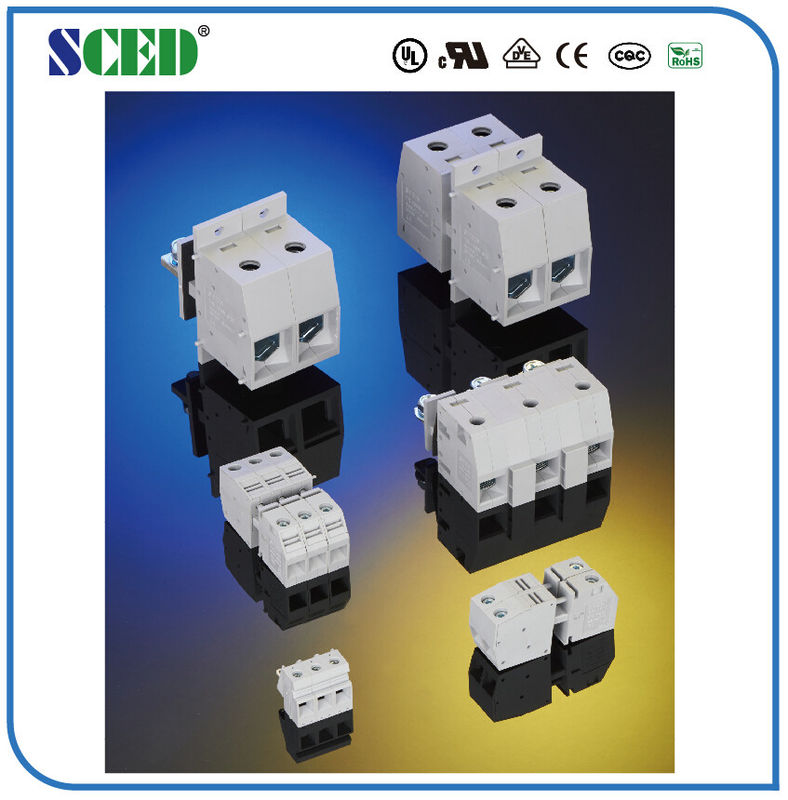

85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector

85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector

  • 85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector
  • 85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector
  • 85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector
85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: UL,CUL,CE,CQC and VDE etc.
Model Number: TR-16N-03
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.65-1.22/Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Terminal Width: 12.1mm Plastic: PA66
Current: 85A Voltage: 600V
Conduction Board: Copper Plating: Tin Plated
Screw: Steel Contact Resistance: Less Than 8mΩ
Wire Range: 4-20 AWG Stripping Length: 16mm
High Light:

panel mount terminal block connector

,

pcb mount terminal blocks

85A Feed Through Terminal Block 600V 12.1mm Grey Wall Panel Mount Connector





Detailed product Description:



Pitch 12.1mm, 600V 85A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks



Standard color: Black. Other colors also available.



Applications:

1.They can be used on PCB, Frequency Converters, Server Site, Switch, Power Supply and Electric Lighting,



2. Besides Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..can be used as well.

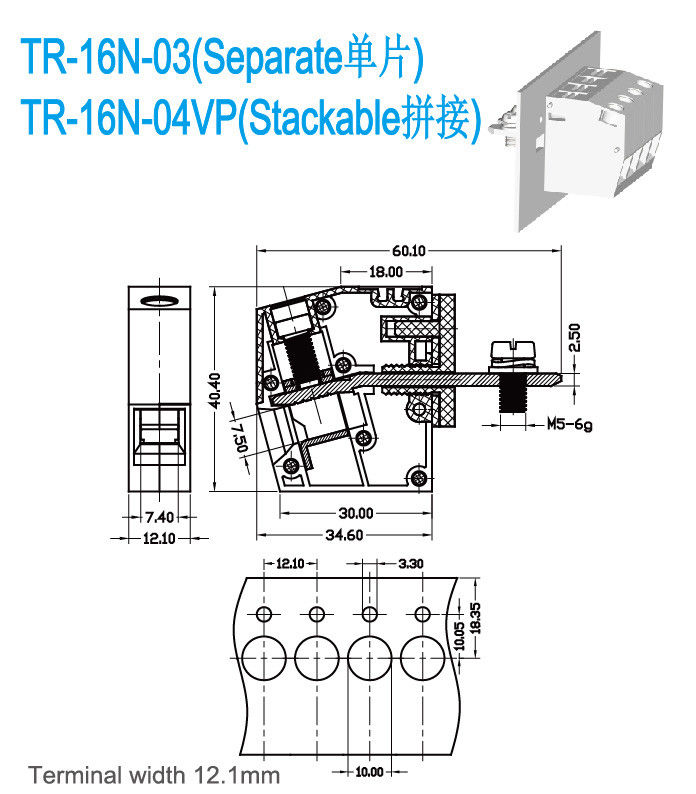

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current               V/A

600 / 85



600 / 5

Wire Range                                 AWG

4-20



4-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current                 V/A

630 / 101

800 / 101

1000 / 101

Rated Surge Voltage                       KV

6

6

6

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                                 mm

16

Screw / Torque                                / lbf.in

M5 / 22-25



ompetitive Advantage:



  1. good quality
  2. reasonable price
  3. good after-sales service
  4. full range products for selection
  5. Flexible to design the exact part per customers’ demand

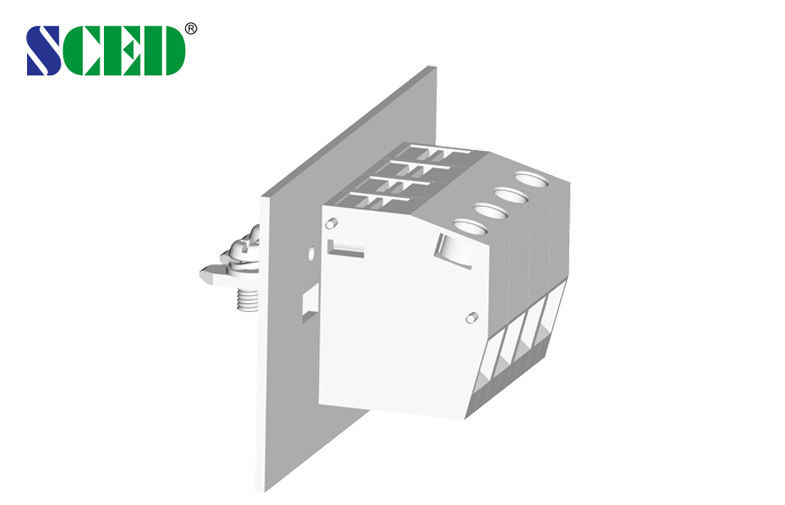

Drawing Photo:
