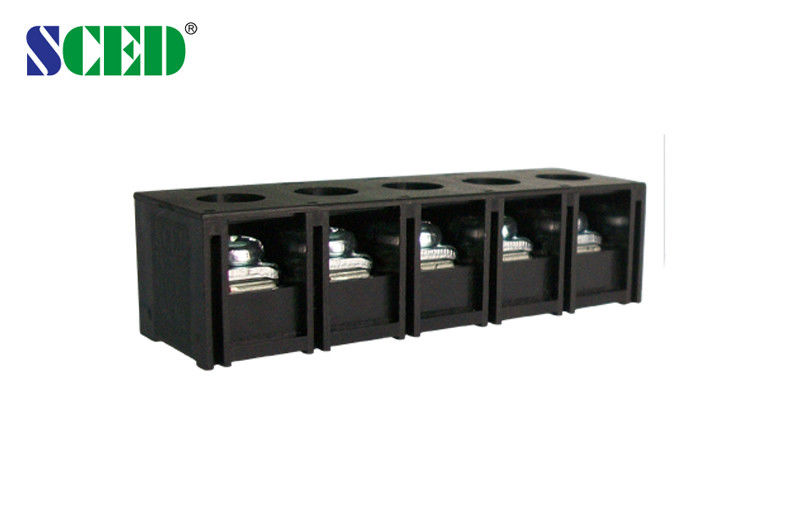

Black 40A Barrier Terminal Block for Power with Cover 2-18 Poles / M4 Screw Brass PBT

Black 40A Barrier Terminal Block for Power with Cover 2-18 Poles / M4 Screw Brass PBT

    • Black 40A Barrier Terminal Block for Power with Cover 2-18 Poles / M4 Screw Brass PBT
    • Black 40A Barrier Terminal Block for Power with Cover 2-18 Poles / M4 Screw Brass PBT
  • Black 40A Barrier Terminal Block for Power with Cover 2-18 Poles / M4 Screw Brass PBT

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL,CE,CUL etc.
    Model Number: TB1300-05-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 Piece/Pieces
    Price: USD 0.076-0.142 Per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 11.1mm Poles: 2-12 Poles
    Voltage: 600V Current: 40A
    Wire Range: 20-8 AWG Screw: M4
    Torque: 10.6-13mm Insulation Material: PBT
    Inflammability Class: UL94-V0 Terminal: Brass

    Black 40A Barrier Terminal Block for Power with Cover 2-18 Poles M4 Screw Brass PBT



    Detailed product Description:



    Pitch 11.10mm, 600V 40A, 2-12P, Barrier Terminal Blocks, Power Terminal Blocks



    ■Right angle wire inlet; Vertical wire inlet; 45 degree wire inlet



    ■Single Level; Double levels;Triple levels



    Standard color: Black.



    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:



    Black 40A Barrier Terminal Block for Power with Cover 2-18 Poles / M4 Screw Brass PBT

    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

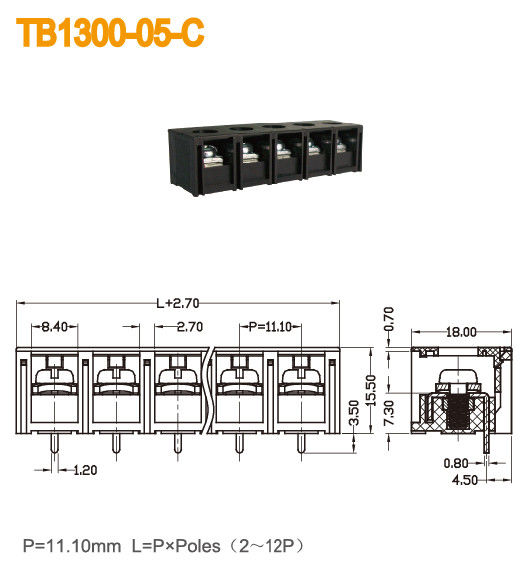

    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 40 600 / 40 600 / 5
    Wire Range AWG 20-8 20-8 20-8
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 / 40 1000 / 40 1000 / 40
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 1.5
    Material
    Insulation Material / Inflammability Class PBT / UL94, V-0
    Terminal / Plating Brass /Tin Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    PCB Hole Diameter mm φ1.8
    Stripping Length mm 10-12
    Screw / Torque / lbf.in M 4 / 10.6-13



    Competitive Advantage:



    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand
