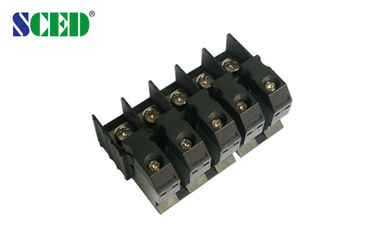

Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5

Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5

    • Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5
    • Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5
  • Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5

    Product Details:

    Place of Origin: China
    Brand Name: SCED
    Certification: UL,CE,CUL,CQC and VDE etc.
    Model Number: TD90-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.952-0.195 Per Pole
    Packaging Details: Standard export packing carton, or according to customers demand.
    Delivery Time: 5-20 Working Days
    Payment Terms: T/T, L/C
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Pitch: 15mm Current: 90A
    Voltage: 600V Wire Range: 4-20 AWG
    Rated Connecting Capacity: 16mm2 Insulation Material: PA66
    Inflammability Class: UL94-V0 Conduction Board: Brass
    Plating: Nickel Plated Stripping Length: 10-12mm
    Screw: M5 Torque: 14-16 Lbf.in
    Color: Black

    Electrical Feed Through Terminal Block Connectors 85A Brass Perforation Panel Mount



    Detailed product Description:



    Pitch 15.0mm, 600V 90A, 2P-12P, Perforation Terminal block, Feed Through Terminal Block connector



    Standard color: Black.

    Other colors also available, please refer to below How to Order and select the color you want.



    How to order:

    Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5



    Applications:



    Our products can be used in Power Supply, Industrial Control, Servo Drive, PCB, Automation, Communication, Rail Transportation, Electric Lighting, Medeical Equipment, Security and so on.



    Parameter and Drawing Specifications:

    UL Technical Data B C D
    Rated Voltage / Current V/A 600 / 90 600 / 90
    Wire Range AWG 4-20 4-20
    IEC Technical Data
    Overvoltage Category
    Contamination Class 3 2 2
    Rated Voltage / Current V/A 800 / 90 1000 / 90 1000 / 90
    Rated Surge Voltage KV 8 8 8
    Rated Connecting Capacity mm2 16
    Material
    Insulation Material / Inflammability Class PA66 / UL94, V-0
    Conduction Board / Plating Brass / Nickel Plated
    Screw / Plating Steel / Nickel Plated
    Other Data
    Stripping Length mm 10-12
    Screw / Torque / lbf.in M5 / 14-16



    Competitive Advantage:



    1. Strong R&D abilities
    2. OEM and ODM service
    3. 10 main series and more than 1000 models for selection
    4. High stable quality
    5. Competitive price
    6. Good service

    Electrical Feed Through Terminal Block Connectors 85A Brass Perforation 15mm M5
