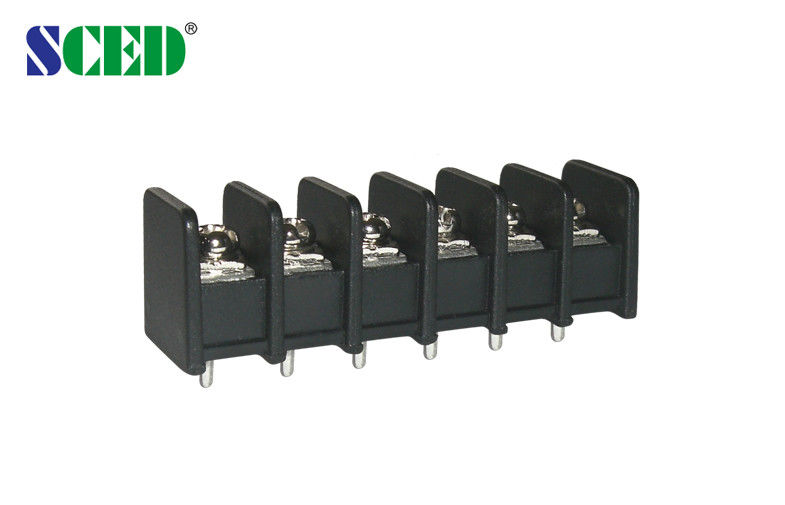

8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal

8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal

    • 8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
    • 8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
    • 8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
  • 8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: SCED
    Certification: CE,UL,CUL,CQC and VDE etc.
    Model Number: TB825-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Piece/Pieces
    Price: USD 0.04-0.08 per Pole
    Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
    Delivery Time: 5-20 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Pole/Poles per Month
    Contact Now
    Detailed Product Description
    Poles: 2-32 Poles Pitch: 8.255mm
    Current: 20A Voltage: 300V
    Plastic: PBT Screw: M3
    Inflammability Class: UL94, V-0 Certificate: UL

    8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal



    Detailed product Description:



    Pitch 8.255mm, 300V 20A, 2P-32P, Barrier Terminal Blocks, Power Terminal Blocks

    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

    ■Single Level;  □Double levels;  □Triple levels

    Standard color: Black. Other colors also available.



    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, etc..



    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current                V/A

    300/20



    300/10

    Wire Range                                 AWG

    12-26



    12-26

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current                  V/A

    320 / 32

    400 / 32

    630 / 32

    Rated Surge Voltage                      KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    4

    Material



    Insulation Material / Inflammability Class

    PBT / UL94, V-0

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Nickel Plated

    Other Data



    PCB Hole Diameter                       mm

    φ1.8

    Stripping Length                           mm

    6-7

    Screw / Torque                          / lbf.in

    M 3 / 5-7



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. OEM service

    Drawing photo



    8.255mm Pitch Barrier Screw Terminal Block Connector 2-32 Poles 300V Single Terminal
